WILD BOAR RACING

HONDA NAVI 125CC BIG BORE PISTON & ALLOY CYLINDER KIT

53MM • 125CC • HIGH COMPRESSION • ALLOY RACING CYLINDER

Purpose-designed for the Honda Navi

Take your Honda Navi beyond its standard 110cc configuration with the Wild Boar Racing 53mm Big Bore Piston & Alloy Cylinder Kit.

Developed specifically around the Honda Navi platform, this complete piston-and-cylinder package combines a 53mm precision-cast high-compression piston with a lightweight aluminium alloy racing cylinder.

The result is an approximately 125cc engine configuration, providing increased displacement and a performance-oriented foundation for further engine modifications and tuning.

---

KEY FEATURES

• 53mm big-bore configuration
• Approx 125cc displacement
• Precision-cast high-compression piston
• High-compression convex piston crown
• Lightweight aluminum alloy racing cylinder
• Purpose-designed piston skirt geometry
• High-tensile racing piston pin
• Complete piston & cylinder package
• Developed specifically for the Honda Navi
• Australian developed and tested

---

WHY 125CC?

Increasing the bore from the standard configuration to 53mm increases engine displacement to approximately 125cc while retaining the Honda Navi’s original stroke.

The additional displacement provides greater performance potential and creates a stronger foundation for further modifications.

EXPECTED BENEFITS OF THE BIG-BORE CONFIGURATION

• Increased engine displacement
• Increased torque
• Stronger acceleration
• Improved throttle response
• Greater scope for further performance modifications

Actual performance will depend on the overall engine configuration, including fueling, exhaust.

---

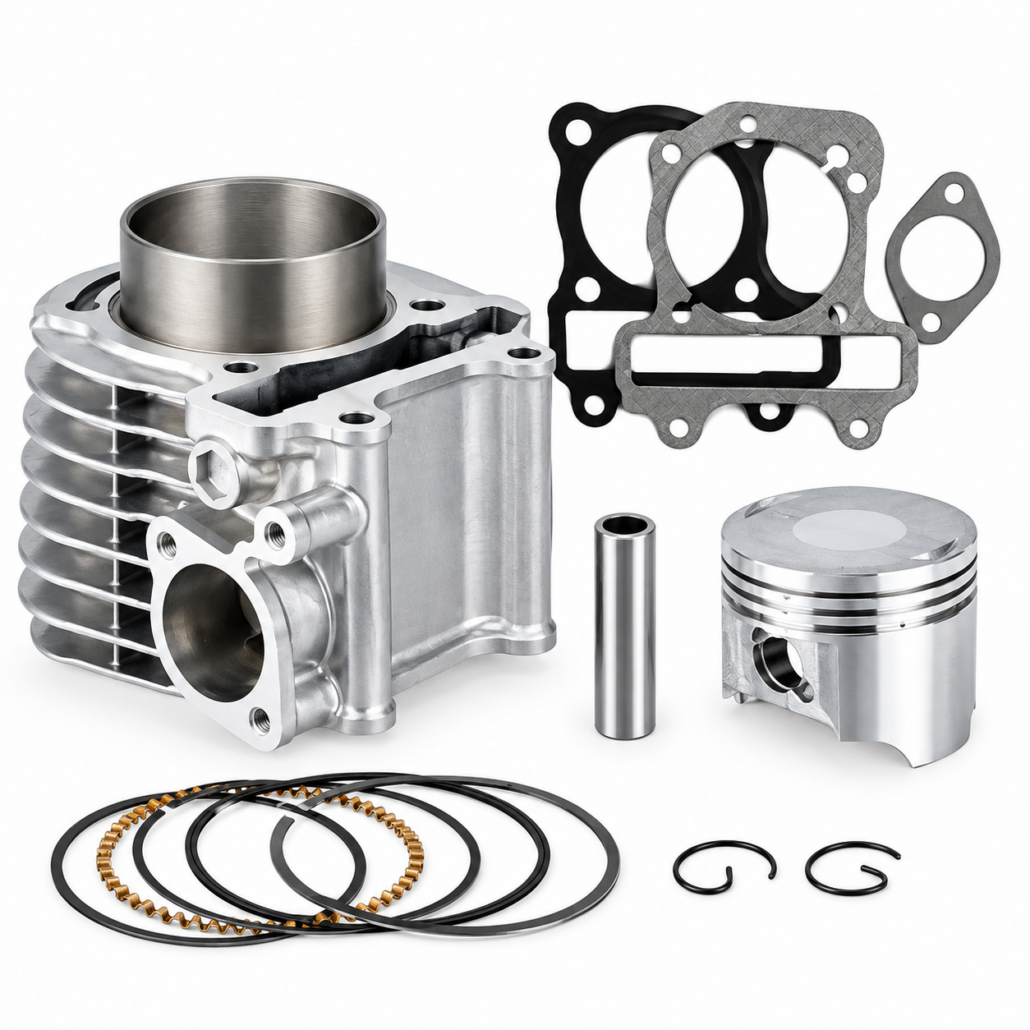

WHAT YOU RECEIVE

COMPLETE WILD BOAR 125CC BIG-BORE KIT

1 × Wild Boar Racing 53mm Aluminum Alloy Racing Cylinder

1 × Wild Boar Racing 53mm High-Compression Custom Manufactured Piston

1 × 53mm Piston Ring Set

1 × High-Tensile Racing Piston Pin

2 × Piston Pin Circlips

1 × Complete Base & Head Gasket Set/Standard thickness

1 × NGK CPR7EA-9 Spark Plug

Everything required for the core piston-and-cylinder conversion is supplied as part of the kit.

---

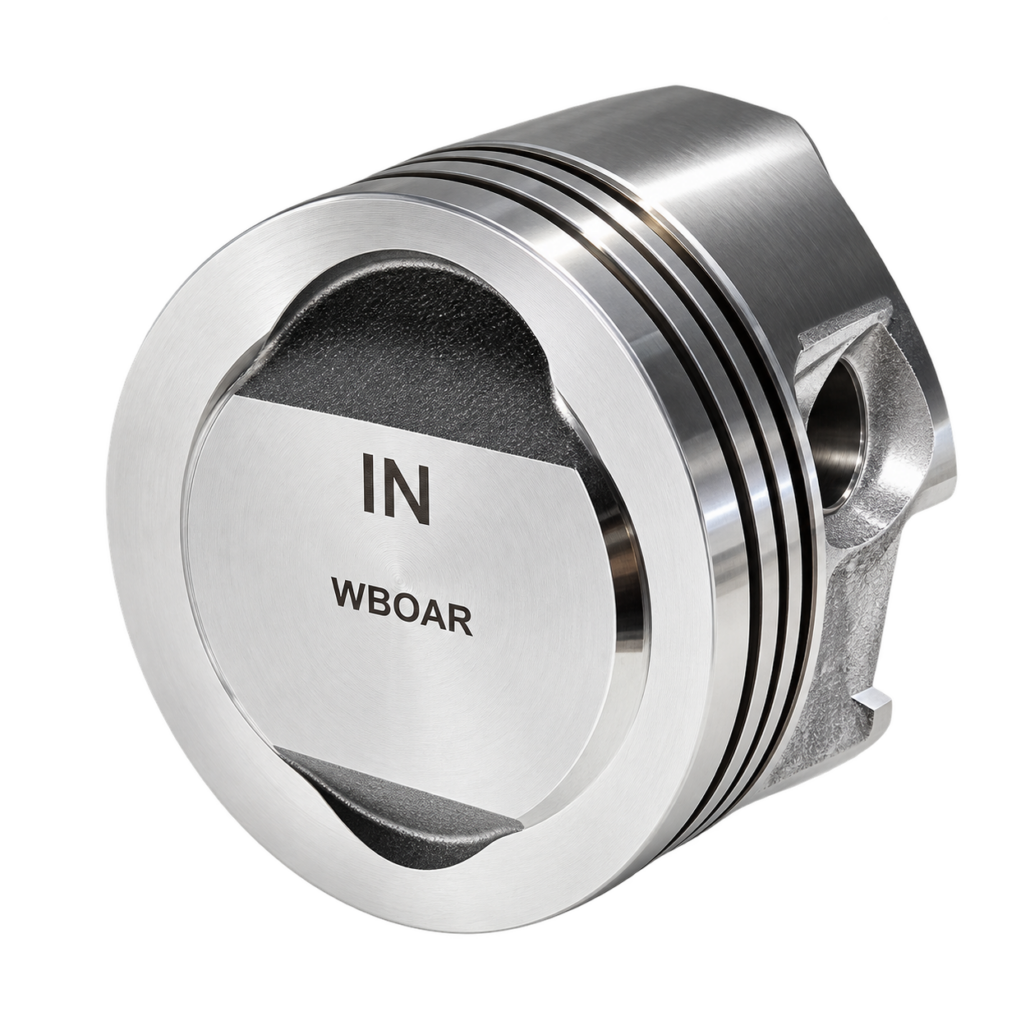

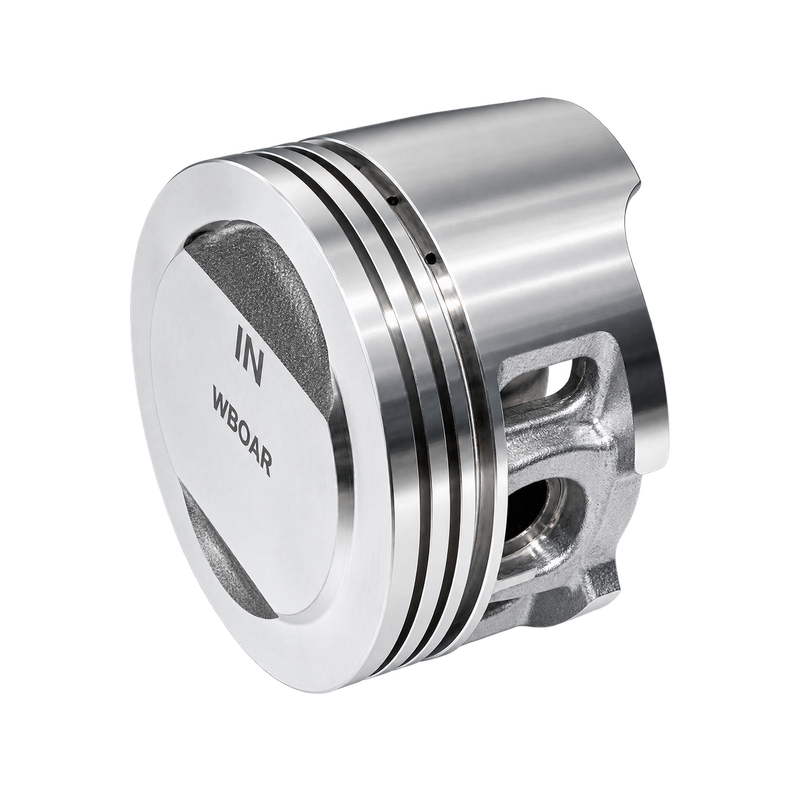

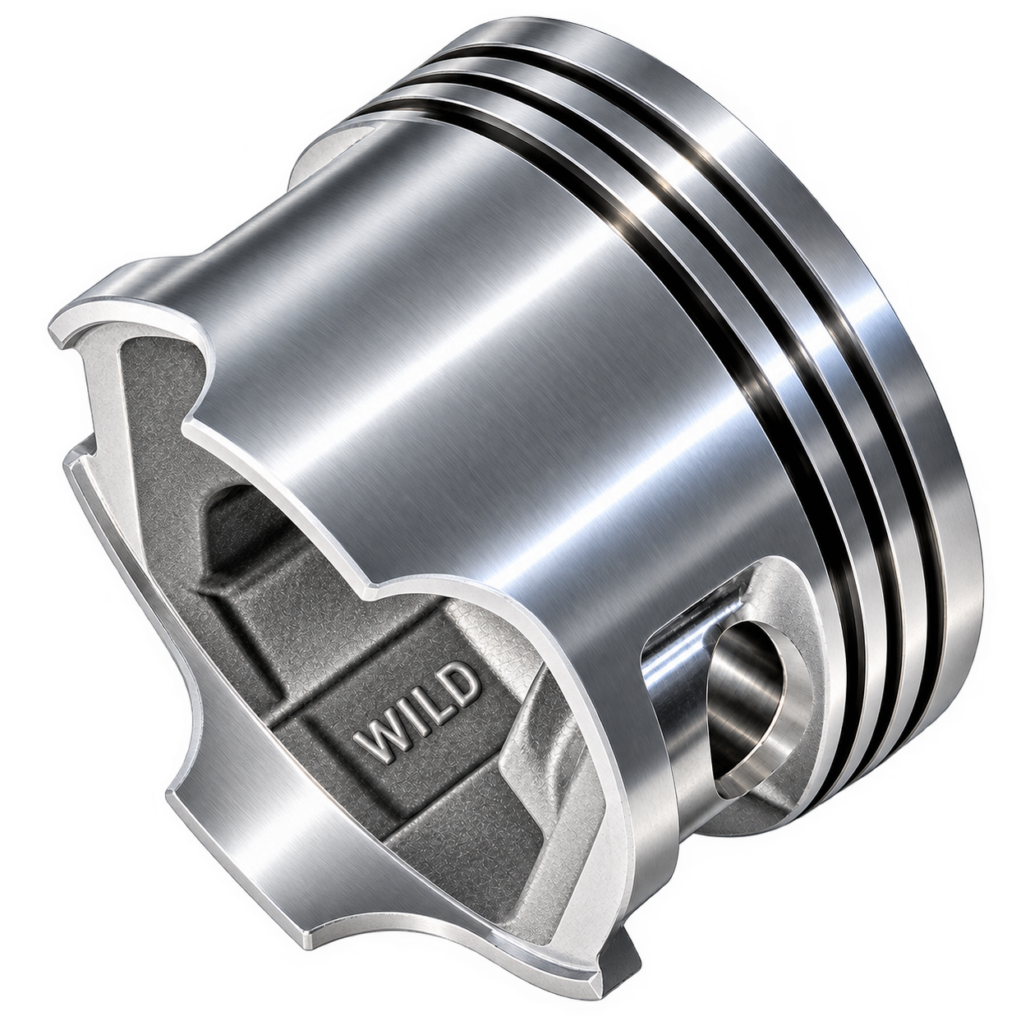

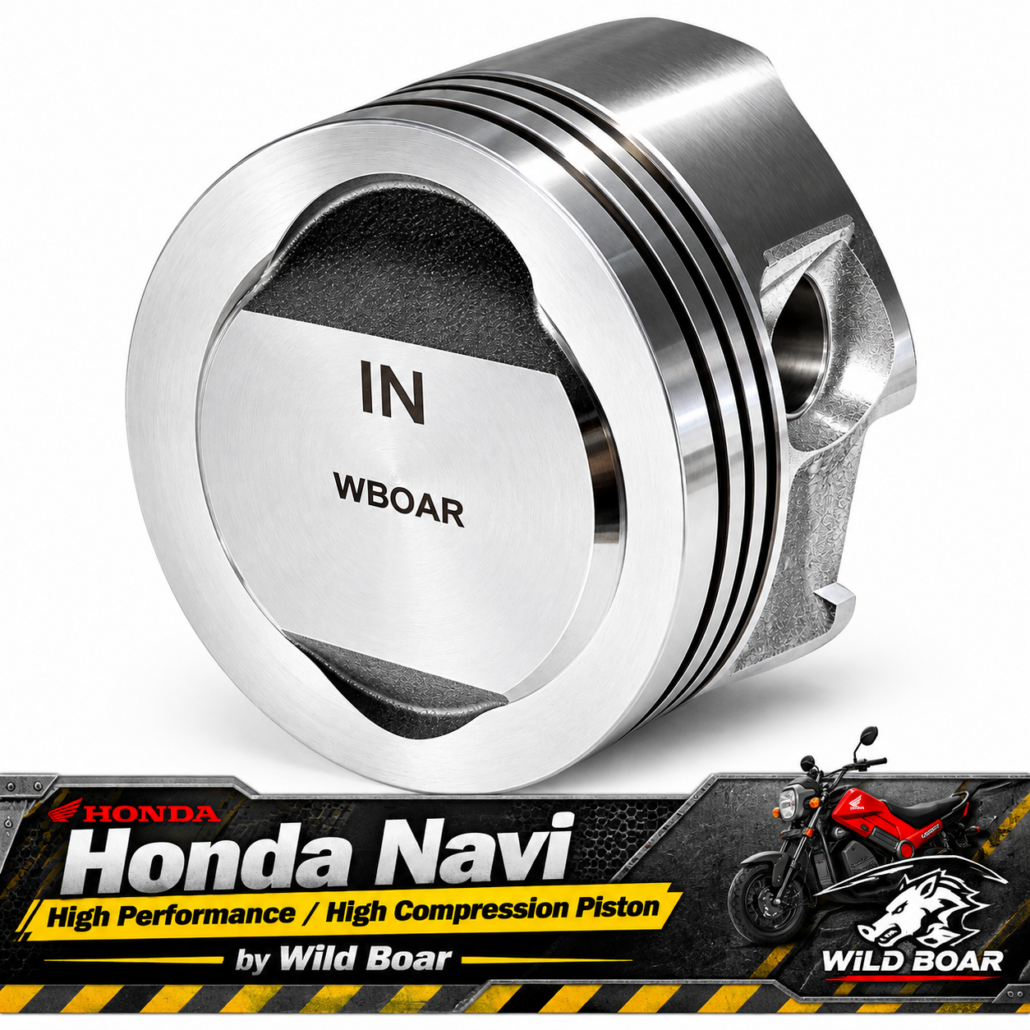

WILD BOAR PRECISION-CAST PISTON

At the center of the kit is the Wild Boar 53mm precision-cast high-compression piston.

The piston has been developed specifically for the Honda Navi application, with attention given to:

• Piston skirt geometry
• Skirt contact area
• Internal material distribution
• Wrist-pin boss structure
• Crown design
• Ring-land configuration
• Overall piston mass

The piston uses a high-compression convex crown designed as part of the complete Wild Boar piston-and-cylinder configuration.



---

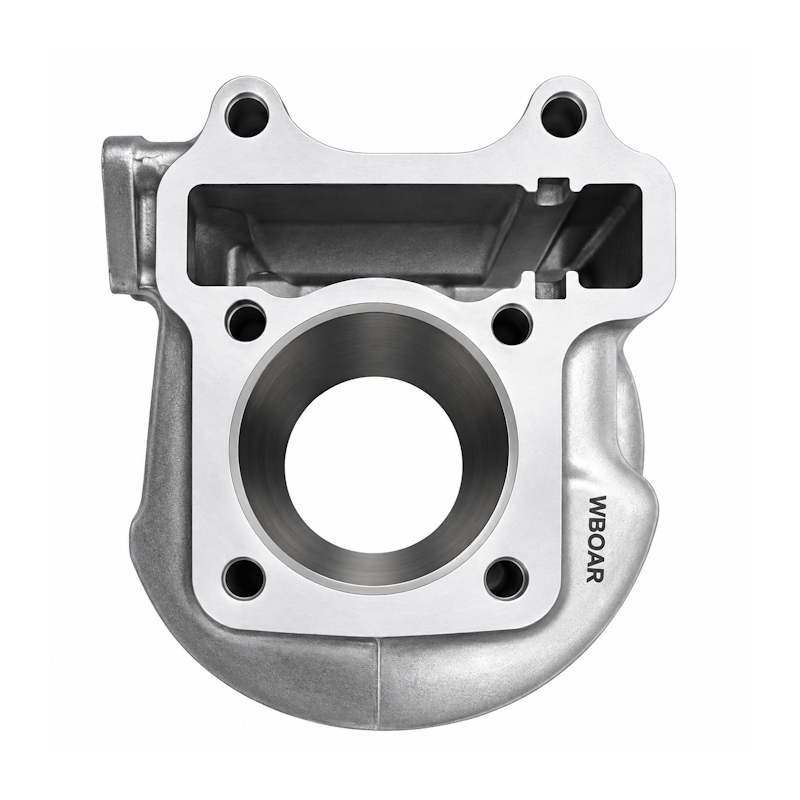

LIGHTWEIGHT ALLOY RACING CYLINDER

The Wild Boar cylinder is manufactured from lightweight aluminum alloy and is purpose-designed around the 53mm piston.

The piston and cylinder are supplied as a matched big-bore package rather than simply adapting a larger piston to the original cylinder.

WILD BOAR APPROACH

53mm Piston

Purpose-Designed Alloy Cylinder

Matched Piston & Cylinder Geometry

Complete Installation Components

---

DEVELOPED FOR THE HONDA NAVI

Wild Boar developed this 125cc piston and alloy cylinder package specifically for the Honda Navi platform.

The development process done here in Australia included installation and evaluation processes before the kit was released for the aftermarket.

The Wild Boar objective was straightforward:

DESIGN THE PISTON.

DESIGN THE CYLINDER.

BUILD THE COMPLETE PACKAGE AROUND THE HONDA NAVI.

---

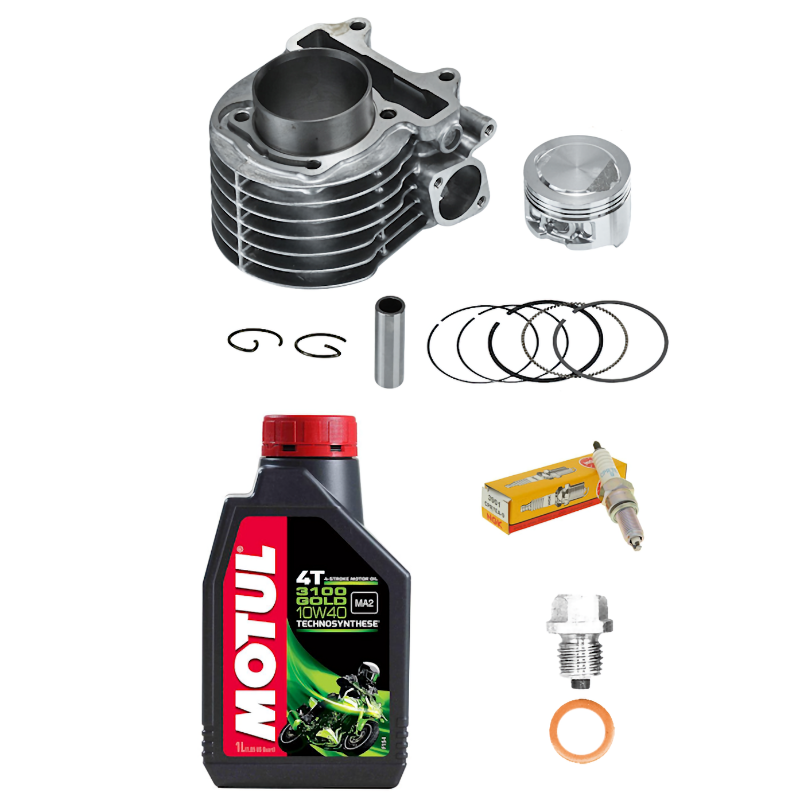

OPTIONAL COMPLETE INSTALL PACK

Make your installation easier with the Wild Boar Complete Install Pack.

ADDITIONAL ITEMS INCLUDE:

1 × 1L Motul 3100 Gold 10W-40 Engine Oil

1 × Upgraded NGK Spark Plug

1 × Magnetic Sump Bolt

A convenient option for customers carrying out the complete installation and service at the same time.

---

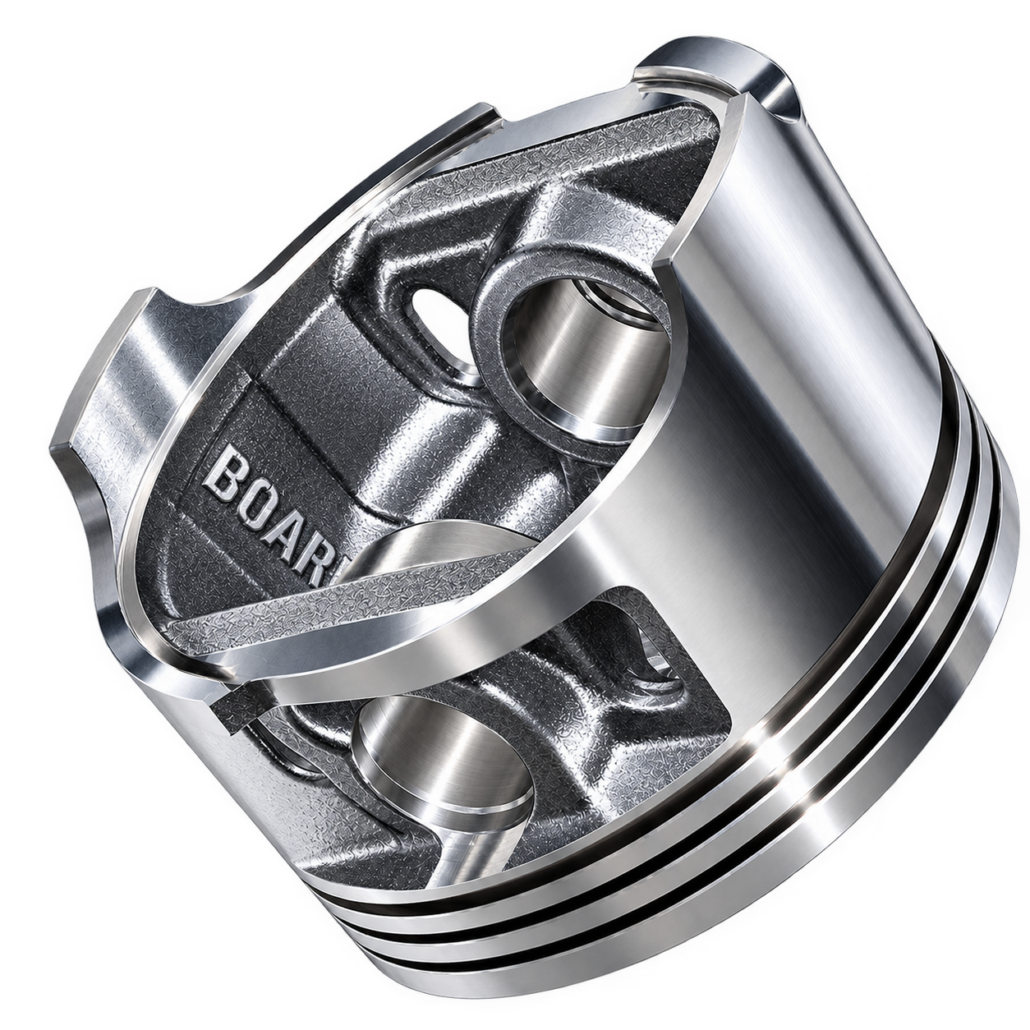

ENGINEERING THE WILD BOAR DIFFERENCE

A big-bore piston is more than its diameter.

When developing the Wild Boar piston, attention was given to the complete piston structure rather than simply increasing the bore size.

WE FOCUSED ON:

53MM BORE

HIGH-COMPRESSION CROWN

PRECISION-CAST PISTON

PURPOSE-DESIGNED SKIRT

WRIST-PIN BOSS STRUCTURE

CONTROLLED MATERIAL DISTRIBUTION

LIGHTWEIGHT ALLOY CYLINDER

MATCHED PISTON & CYLINDER PACKAGE



---

TECHNICAL SPECIFICATIONS

PRECISION-CAST HIGH-SILICON ALUMINUM ALLOY
Engineered for High-RPM Performance.

Fine-Controlled Silicon Structure • Optimized Thermal Stability • Full-Length Structural Skirt • High-Strength Pin-Boss Design.

Click For Wild Boar Piston Specifications



Specification	Wild Boar 125cc Kit
Application	Honda Navi
Bore	53mm
Engine capacity	Approximately 125cc
Cylinder	Lightweight aluminum alloy
Piston	Precision-cast high-compression / Convex Dome / Manufacturer Stamped
Piston crown	Convex high-compression dome
Piston pin	High-tensile high rpm racing pin
Piston rings	53mm
Spark plug	NGK CPR7EA-9
Cylinder type	Big-bore replacement alloy cylinder
Configuration Head / Base Gaskets	53mm bore / Original Navi stroke Standard thickness Navi gaskets ( No gasket stacking )

---

WHY CHOOSE THE WILD BOAR 125CC KIT?

The Wild Boar Racing kit was developed specifically for Honda Navi owners looking for a purpose-designed 53mm piston and alloy-cylinder upgrade.

Rather than focusing solely on displacement, Wild Boar considered the complete piston-and-cylinder package:

PRECISION-CAST PISTON

HIGH-COMPRESSION DESIGN

PURPOSE-DESIGNED SKIRT

ALLOY RACING CYLINDER

HIGH-TENSILE PISTON PIN

COMPLETE INSTALLATION PACKAGE

DEVELOPED FOR THE HONDA NAVI

Basic Fitment Instructions Provided

This is a performance engine component. Mechanical knowledge is required for installation.

Ring installation, gasket installation, valve clearance and engine assembly procedures are essential.

If you are unsure about installation, have the work completed or checked by a qualified motorcycle mechanic.

READY TO UPGRADE YOUR HONDA NAVI?

WILD BOAR RACING

125CC BIG BORE PISTON & ALLOY CYLINDER KIT

53MM • HIGH COMPRESSION • PRECISION CAST • ALLOY RACING CYLINDER

Developed specifically for the Honda Navi.

INCREASE THE BOAR.

INCREASE THE DISPLACEMENT.

TRANSFORM YOUR NAVI.

WILD BOAR RACING — PURPOSE BUILT FOR PERFORMANCE.
